How does Automatic Air Con Thermotronic adjust left/right fan speed?

Submariner1

Senior Member
Joined
Sep 3, 2016
Messages
4,453
Reaction score
632
Location
Windsor Berkshire
Your Mercedes
CL500 2009 5.5
I wondered how you can have different fan speeds left and right, when the air blower motor has twin impellers on the same shaft!

I took out the blower motor to clean it out, and expected to see twin impellers and twin motors.
Nope one motor, a single shaft protrudes either side, and an impeller on each end.

So how can it have fan speed 1 on the left and fan speed 4 on the right? There doesnt seem to be any other fans in the system. Just intrigued!

Worth cleaning out, as I found a fair few bits of dried leaves, a bit of dust and carbon brush dust and reassuringly no water stains :).

Sometimes on start up I had a slight noise for a few seconds or until one speeded up the fan.
So I greased the surround of the shaft as it goes into each bearing.
Whether its the lithium bearing grease or the removal of the leave debris ... but now its silent :):)
So worth doing.


Craiglxviii

Senior Member
Joined
Sep 6, 2015
Messages
15,870
Reaction score
4,917
Location
Cambs UK
Your Mercedes
W215 CL500 Motorway Queen; W251 R320L Familybenz, S211 E320 Avg Designo Edition now sadly missed.
Twin rotors? A clutch on each shaft? It’s German, don’t rule out highly complex design!


dreadlockdw

Senior Member
Joined
Feb 16, 2014
Messages
375
Reaction score
36
Location
Wakefield
Your Mercedes
clk 500 cabriolet 2005; E280 1993
I don't believe they can have different left and right fan speeds. If they had then surely the unit would have separate left and right switches to operate them independently when in manual mode.


peterws1957

Senior Member
Joined
Apr 3, 2016
Messages
1,331
Reaction score
783
Location
Lancashire
Your Mercedes
sl350 /2004/3.7 and CL65/2009/6.0
I don't believe they can have different left and right fan speeds. If they had then surely the unit would have separate left and right switches to operate them independently when in manual mode.
The CL does have separate left and right hand switches, and work independently with several fan speeds.


Botus

Senior Member
Joined
Jul 29, 2014
Messages
4,460
Reaction score
1,230
Location
UK
Your Mercedes
S500/2010/500
sounds strange....

mine has two distinctly different speeds / air flow and sound.... I don't think its flaps
you can have almost silent one side and jet engine the other


alexanderfoti

MBO Forum Supporter
Authorised Forum Supporter
Joined
Mar 25, 2010
Messages
13,155
Reaction score
3,293
Location
Tonbridge
Your Mercedes
W221 S65 AMG - W204 C63 AMG + Various other MB's
Definitely one blower:


Craiglxviii

Senior Member
Joined
Sep 6, 2015
Messages
15,870
Reaction score
4,917
Location
Cambs UK
Your Mercedes
W215 CL500 Motorway Queen; W251 R320L Familybenz, S211 E320 Avg Designo Edition now sadly missed.
af how do you get variable fan speeds on each side of the car with one motor?
Either two rotors orclutched half shafts. Looks like two rotors from that image.


alexanderfoti

MBO Forum Supporter
Authorised Forum Supporter
Joined
Mar 25, 2010
Messages
13,155
Reaction score
3,293
Location
Tonbridge
Your Mercedes
W221 S65 AMG - W204 C63 AMG + Various other MB's
IMO its controlled entirely with flaps. There are only two wires to the motor so control must be done elsewhere.

OP
Submariner1

Submariner1

Senior Member
Joined
Sep 3, 2016
Messages
4,453
Reaction score
632
Location
Windsor Berkshire
Your Mercedes
CL500 2009 5.5
  • Thread Starter
  • Thread starter
  • #14
IMO its controlled entirely with flaps. There are only two wires to the motor so control must be done elsewhere.
Imo Alex must be right.
No other explanation, I only asked in case there was another one of these complete blower units somewhere else.
WIS and EPC dont show any other.


alexanderfoti

MBO Forum Supporter
Authorised Forum Supporter
Joined
Mar 25, 2010
Messages
13,155
Reaction score
3,293
Location
Tonbridge
Your Mercedes
W221 S65 AMG - W204 C63 AMG + Various other MB's
Imo Alex must be right.
No other explanation, I only asked in case there was another one of these complete blower units somewhere else.
WIS and EPC dont show any other.

Mine has another self contained unit In the center console for the rear set passengers. It had a blower, ac evaporator and heater matrix with its own set if duo valves


peterws1957

Senior Member
Joined
Apr 3, 2016
Messages
1,331
Reaction score
783
Location
Lancashire
Your Mercedes
sl350 /2004/3.7 and CL65/2009/6.0
Mine has another self contained unit In the center console for the rear set passengers. It had a blower, ac evaporator and heater matrix with its own set if duo valves
Now you're just bragging...:)


Botus

Senior Member
Joined
Jul 29, 2014
Messages
4,460
Reaction score
1,230
Location
UK
Your Mercedes
S500/2010/500

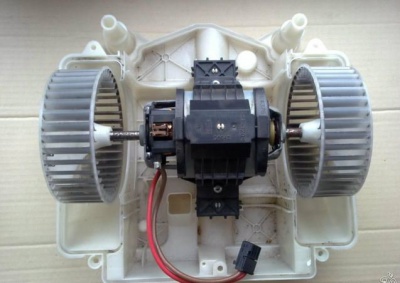

Yep mine looks like this and both left and right turbines on the same shaft, well they turn together. No seperate wires for any kind of clutch.


if you change the air flow or angel of dangle coming in, it might work
